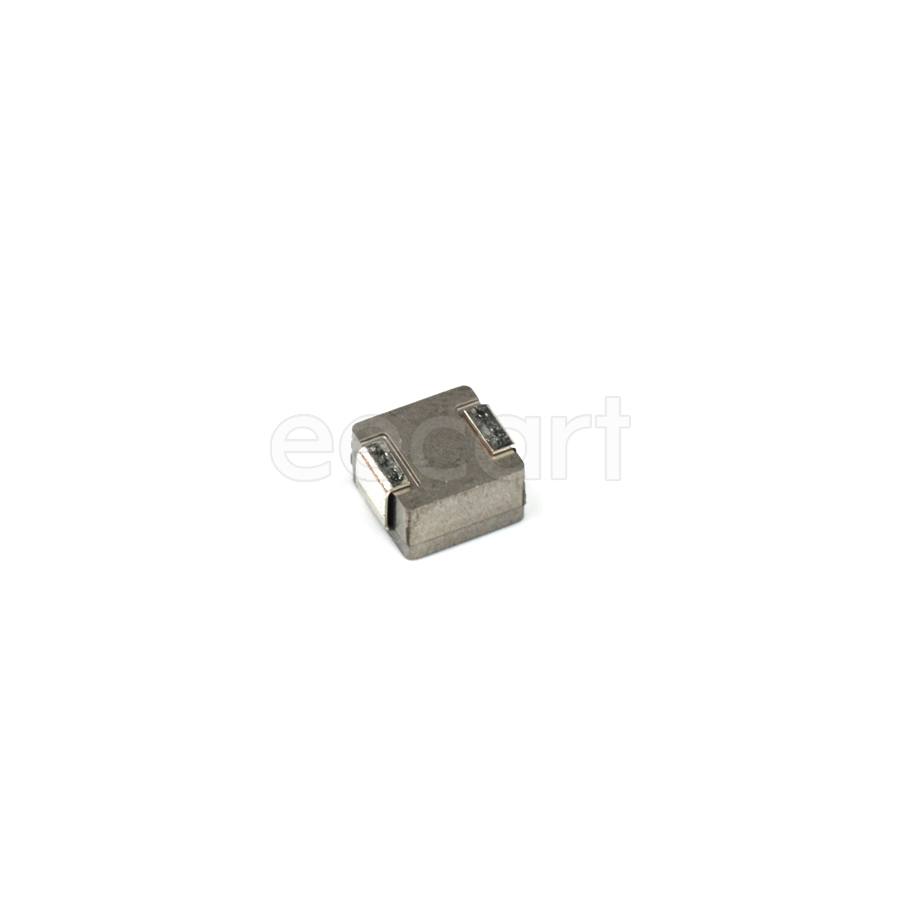

ASPI-0630LR-100M-T15
Manufacturer:
Abracon Corporation
Mfr.Part #:
ASPI-0630LR-100M-T15
Datasheet:
Description:
Fixed Inductors 7.20mmL×6.65mmW×3.00mmH SMD/SMT 10 µH 20 % 4 A 68 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.1882 mm |
| Width | 6.6548 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.65 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 4 A |
| DC Resistance (DCR) | 68 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Carbonyl Powder |
| RMS Current (Irms) | 4 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.5 A |
| Series Resistance | 68 mΩ |
| Saturation Current | 5.5 A |
| Schedule B | 8504100000 |
| Type | Molded |
Stock: 218
Distributors
pcbx
pcbxUnit Price$0.62717
Ext.Price$0.62717
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62717 | $0.62717 |
| 10 | $0.49910 | $4.99100 |
| 25 | $0.45428 | $11.35700 |
| 50 | $0.41349 | $20.67450 |
| 100 | $0.37636 | $37.63600 |
| 300 | $0.35649 | $106.94700 |
| 500 | $0.33766 | $168.83000 |
| 1000 | $0.31690 | $316.90000 |
